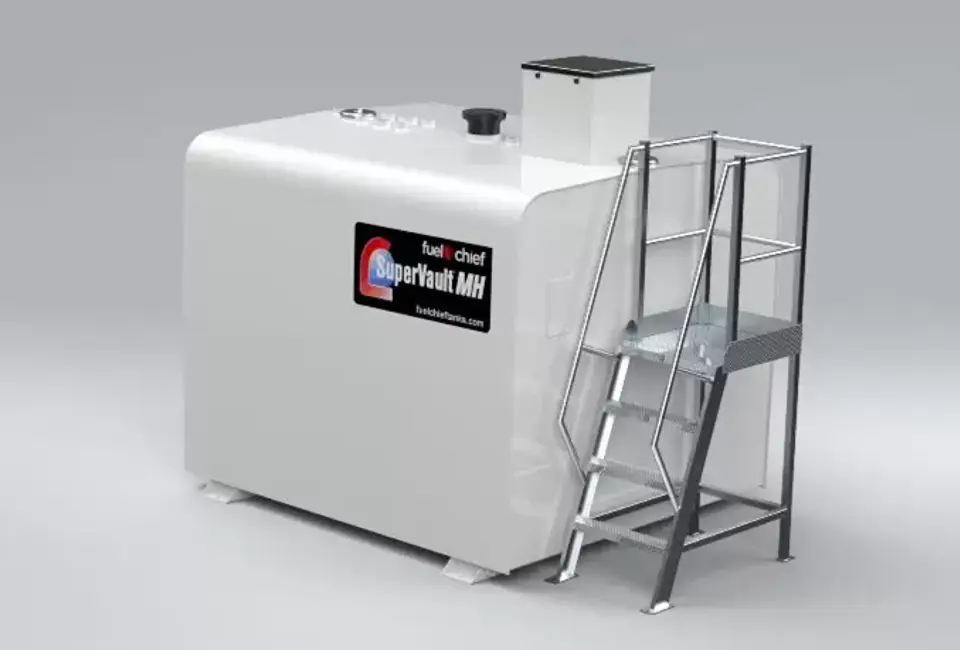

SVR Series 499L - 10,000L
- Environmentally superior: due to the secondarily contained primary tank
- Multi Hazard Tested: 4-hour fire exposure rating, hose-stream resistant, ballistics tested, heavy vehicle impact tested (FRL 240|240|240 as per AS1940)
- Compliant: with international tank approvals, SwRI 95-03, SwRI 93-01, UL2085, UL142
- Ventilation: emergency venting for primary and secondary containment
- Clean fuel: superior thermal efficiency minimising evaporation and degradation of fuel quality
- Interstitial monitoring: capability
- Maximum protection: a 3-coat 15+ year industrial painting system for longevity
- Multiple storage uses: available with multiple compartments for multiple fuel storage
- Stores many liquids: compatible with gasoline, diesel, fuel oil, ethanol, methanol and other chemicals
- Can be lined: for special applications, such as jet fuel or potable water storage
- Diversified material options: material of construction may be carbon or stainless steel
- Easily transportable: relatively light-weight and can be shipped anywhere in the world (empty). Some model sizing allows for shipping in containers reducing global freight costs
- Seismic rating: certified to Importance Level 4 as per AS1170
- Rectangular design: available in rectangular constructions up to 10,000 litres
- Warranty: 30 years
The Supervault Rectangular SVR Series
Industries across the world need to ensure they are compliant when it comes to storing hazardous liquids such as petrol, diesel or chemicals. Fuelchief take the hassle out of this by engineering a compliant customised fuel tank called the SuperVault®.
The SuperVault Rectangular is a high-specification tank which is certified to a true 4-hour fire-rating and is recommended due to its fire protective safety for commercial sectors. The SuperVault tank offers elite fire-rated, bullet-proof, impact-resistant technology which makes it the safest and most durable tank in the world.
This engineered fuel tank is 4-hour fire-rated and is recommended due to its fire protective safety for commercial sectors. The SuperVault® tank offers elite fire-rated, bullet-proof, impact-resistant technology and has been designed, fabricated and tested in accordance with SwRI 95-03 which makes it the safest and most durable tank in the world. In many circumstances where diesel or petrol needs to be stored in commercial buildings, the SuperVault® is the only permitted tank. The SuperVault has been engineered to withstand conditions from the sub-zero temperature of the Arctic to the blistering heat of the desert. No other fuel storage system in the world can provide a higher level of certified fire protection, insulation, and fuel security than a Fuelchief SuperVault®
SuperVault Rectangular Features
Around the world, new codes of practice and legislation often require all fire tanks to be either SwRI 95-03 or UL 2085 (2 hour) approved; the SuperVault® is both. It is the only 4-hour fireproof petrol tank certified for above ground petrol tanks, according to the Southwest Research Institute (SwRI) (Texas, USA) 95 – 03 multi-hazard test. During this test, despite being subjected to fire, hose steam, projectiles and heavy-vehicle impact; the integrity of the SuperVault’s primary tank remained intact. This tank is also a popular choice for solvents, which often has the same “flashpoint” as petrol.
IMPORTANT NOTE: Insist on 95-03 as it is the only fire-rated tank in the world that can be repaired and re-used after the fire or event has occurred. The 95-03, 4-hour fire test involves an additional 2-hour fire exposure test using the same, fully assembled test tank for all tests.
In the event of a fire, the integrity of any tank certified to UL-2085 (2 hour) or SWRI 93-01 (4 hour) will be deemed to have been compromised and will not be compliant after the event.
No additional bunding is required for the SuperVault®. Engineered and constructed for maximum protection, the SuperVault’s outer steel tank provides secondary containment as well as protecting the inner tank from the elements of nature and fire. The secondary containment tank also conforms to international requirements and is both pressure and vacuum testable on site.
The interstitial insulation provides maximum thermal protection to the internal steel tank. This insulation material reduces heat transfer from the outer tank to the inner tank, therefore minimising the risk of an environmental disaster or the event of a pool fire. The porous nature of the insulating material allows for monitoring of leakage from the primary tank. In hot climates, the insulation also minimises fuel losses due to evaporation. The SuperVault® emergency vent controls the pressure in the tank in extreme fire conditions to eliminate explosion.
A 30-year warranty is offered, providing the fuel tank is installed and maintained in accordance with the industry standards, including de-watering of the primary tank.
Styles and Sizes
| Model | Description | Capacity (litres) | Width (mm) | Length (mm) | Height (mm) | Weight (empty kg) |
|---|---|---|---|---|---|---|
| SVR-499 | SuperVault Rectangular 4 hour fire rated tank | 499 | 1100 | 1432 | 1272 | 1497 |
| SVR-1000 | SuperVault Rectangular 4 hour fire rated tank | 1,000 | 1100 | 1650 | 1745 | 2150 |
| SVR-1200 | SuperVault Rectangular 4 hour fire rated tank | 1,200 | 1100 | 1887 | 1745 | 2198 |
| SVR-2000 | SuperVault Rectangular 4 hour fire rated tank | 2,000 | 1100 | 2250 | 2151 | 3046 |
| SVR-3000 | SuperVault Rectangular 4 hour fire rated tank | 3,000 | 1474 | 2250 | 2129 | 3452 |
| SVR-4000 | SuperVault Rectangular 4 hour fire rated tank | 4,000 | 2150 | 1934 | 2065 | 4289 |
| SVR-4999 | SuperVault Rectangular 4 hour fire rated tank | 4,999 | 2150 | 2326 | 2065 | 4544 |
| SVR-6000 | SuperVault Rectangular 4 hour fire rated tank | 6,000 | 2150 | 2724 | 2065 | 4742 |
| SVR-7500 | SuperVault Rectangular 4 hour fire rated tank | 7,500 | 2150 | 3313 | 2065 | 3260 |
| SVR-10000 | SuperVault Rectangular 4 hour fire rated tank | 10,000 | 2150 | 3975 | 2220 | 7403 |
| SVR-10000S | SuperVault Rectangular 4 hour fire rated tank | 10,000 | 2150 | 5950 | 1662 | 8559 |
Downloads
PDF Sheets - click to open in a new tab
Case Studies
Spark Data Centre
Fuelchief collaborated with a series of suppliers to place a custom Fuelchief SuperVault into a brand new data centre facility for Spark.
Joe Deck
Spark Telecom Exchange Building
Fuelchief collaborated with Aurecon engineers to place a customised Fuelchief SuperVault for Spark's telecommunications building.
Joe Deck
Powerco
Fuelchief teamed up with Terra Cat to provide a Fuelchief DCD100 diesel fuel tank to Powerco for critical power backup.
Joe Deck
Relocatable SuperVault For Client
See how our SuperVault was the ideal solution because of it's relocatable design and compliance that it proved to be a real asset.
Joe Deck
University Of Canterbury
Our latest SuperVault case study on a how our 4-hour fire rated tank replaced an underground fuel tank for the University.
Joe Deck
Sandspit Marina
Fuelchief supplies tank to Sandspit Marina, view the latest results of the transaction and why the manager is looking for another tank from us.
Joe Deck

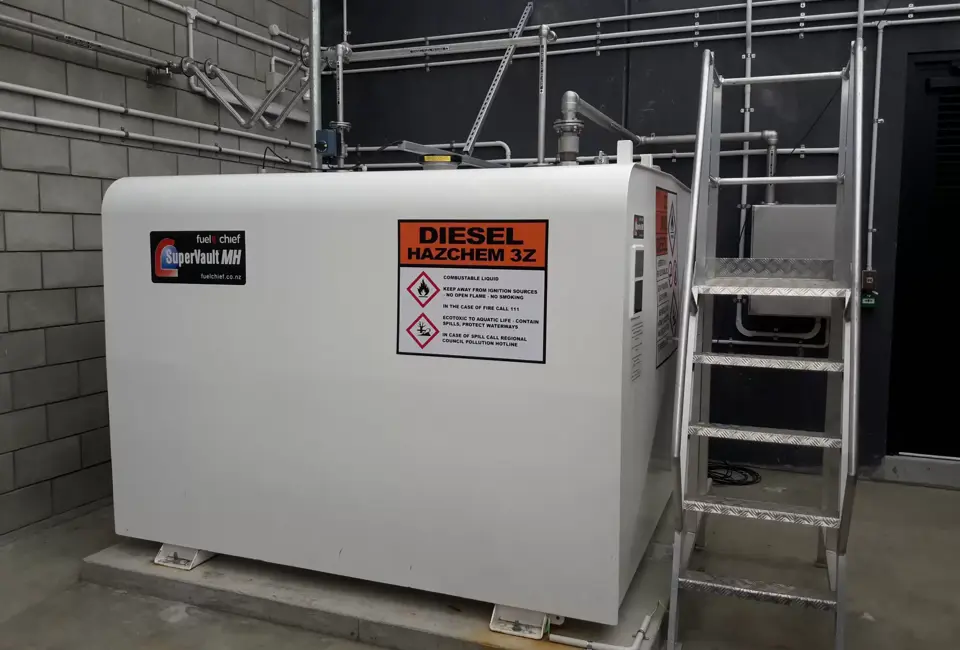

Airways: Critical Control Tower Upgrades
The Fuelchief SuperVault 4 hour fire rated fuel tank was custom made to ensure the critical environment of a aviation control tower was met.
Joe Deck
NZ Bus Auckland Depot Upgrade
See how the SuperVault Cylindrical 4 hour fire rated tank ensured refuelling compliance for NZ Bus. Check out the latest case study.
Joe Deck
Air New Zealand Jet Engine Testing Facility
Fuelchief supplied Air New Zealand, one of the most recognised global airlines in the world, a SuperVault for their new testing facility.
Joe Deck
Christchurch Hospital
Chirstchurch Hospital, consultants needed a SuperVault tank to back up critical generators to ensure continual power in an outage.
Joe Deck
Allied Petroleum iTank in Invercargill
The Fuelchief SuperVault 4 hour fire rated fuel tank was custom made to ensure the critical environment of a aviation control tower was met.
Joe Deck
Downer Bitumen Plant Upgrade Project
Up at Port Whangarei Downer recently took delivery of a SuperVault SVR-4999 and also a DC100 Diesel tank – both supplied via Z Energy for Downers bitumen plant upgrade.
Joe Deck

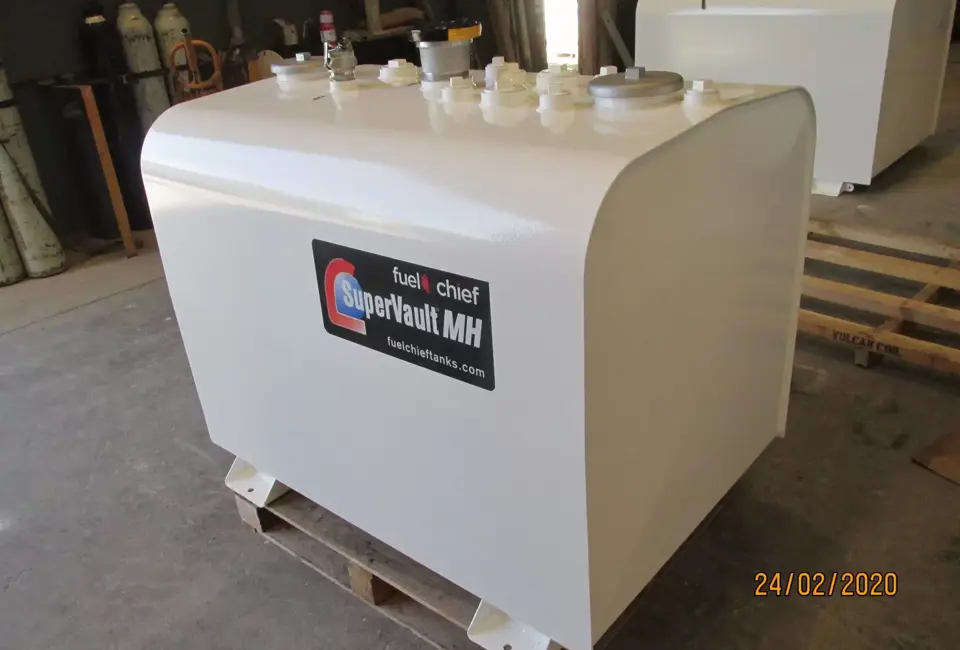

Citibank Gets a SuperVault
