SuperVault iTank
SViT Series - 13,000L - 88,900L
- Environmentally superior: G300 mild steel twin shells, self-bunded protected tank
- Multi Hazard Tested: 4-hour fire exposure rating, hose-stream resistant, ballistics tested, heavy vehicle impact tested (FRL 240|240|240 as per AS1940)
- Compliant: with international tank approvals SwRI 95-03, SwRI 93-01, UL2085, UL142
- Ventilation: emergency venting for primary and secondary containment
- Clean fuel: superior thermal efficiency minimising evaporation and degradation of fuel quality
- Interstitial monitoring: capability
- Maximum protection: a 3-coat 15+ year industrial painting system for longevity
- Diversified material options: material of construction may be carbon or stainless steel
- Easily transportable: relatively light-weight and can be shipped anywhere in the world (empty).
- Seismic rating: certified to Importance Level 4 as per AS1170
- Warranty: 30 years
Supervault iTank SViT Series
Industries across the world need to ensure they are compliant when it comes to storing hazardous liquids such as petrol, diesel or chemicals. Fuelchief take the hassle out of this by engineering a compliant customised fuel tank called the SuperVault®. This engineered fuel tank is 4-hour fire-rated and is recommended due to its fire protective safety for commercial sectors.
The SuperVault iTank has been re-designed and certified as a rectangular ‘obround’ shape to cater for much tighter space requirements inside buildings resulting in the design of these rooms being much simpler, more cost effective and futureproof without the need to fire-rate the room.
The SuperVault® tank offers elite fire-rated, bullet-proof, impact-resistant technology and has been designed, fabricated and tested in accordance with SwRI 95-03 which makes it the safest and most durable tank in the world. In many circumstances where diesel or petrol needs to be stored in commercial buildings, the SuperVault® is the only permitted tank. The SuperVault has been engineered to withstand conditions – from the sub-zero temperature of the Arctic to the blistering heat of the desert.
No other fuel storage system in the world can provide a higher level of certified fire protection, insulation, and fuel security than a Fuelchief SuperVault®.
SuperVault iTank Features
Around the world, new codes of practice and legislation often require all fire tanks to be either SwRI 95-03 or UL 2085 (2 hour) approved; the SuperVault® is both. It is the only 4-hour fireproof petrol tank certified for above ground petrol tanks, according to the Southwest Research Institute (SwRI) (Texas, USA) 95 – 03 multi-hazard test. During this test, despite being subjected to fire, hose steam, projectiles and heavy-vehicle impact; the integrity of the SuperVault’s primary tank remained intact. This tank is also a popular choice for solvents, which often has the same “flashpoint” as petrol.
IMPORTANT NOTE: Insist on 95-03 as it is the only fire-rated tank in the world that can be repaired and re-used after the fire or event has occurred. The 95-03, 4-hour fire test involves an additional 2-hour fire exposure test using the same, fully assembled test tank for all tests.
In the event of a fire, the integrity of any tank certified to UL-2085 (2 hour) or SWRI 93-01 (4 hour) will be deemed to have been compromised and will not be compliant after the event.
No additional bunding is required for the SuperVault®. Engineered and constructed for maximum protection, the SuperVault’s outer steel tank provides secondary containment as well as protecting the inner tank from the elements of nature and fire. The secondary containment tank also conforms to international requirements and is both pressure and vacuum testable on site.
The interstitial insulation provides maximum thermal protection to the internal steel tank. This insulation material reduces heat transfer from the outer tank to the inner tank, therefore minimising the risk of an environmental disaster or the event of a pool fire. The porous nature of the insulating material allows for monitoring of leakage from the primary tank. In hot climates, the insulation also minimises fuel losses due to evaporation. The SuperVault® emergency vent controls the pressure in the tank in extreme fire conditions to eliminate explosion.
A 30-year warranty is offered, providing the fuel tank is installed and maintained in accordance with the industry standards, including de-watering of the primary tank.
Styles and Sizes
| Model | Description | Capacities (Litres) | Width (mm) | Length (mm) | Height (mm) |
|---|---|---|---|---|---|
| SViT 215-13,000 | SuperVault 4 hour fire rated iTank | 13000 | 2440 | 6060 | 1500 |
| SViT 215-13,000 | SuperVault 4 hour fire rated iTank | 19800 | 2440 | 9100 | 1500 |
| SViT 215-26,900 | SuperVault 4 hour fire rated iTank | 27000 | 2440 | 12160 | 1500 |
| SViT 315-16,700 | SuperVault 4 hour fire rated iTank | 16700 | 3000 | 6060 | 1500 |
| SViT 315-25,500 | SuperVault 4 hour fire rated iTank | 25500 | 3000 | 9100 | 1500 |
| SViT 315-34,600 | SuperVault 4 hour fire rated iTank | 34600 | 3000 | 12160 | 1500 |
| SViT 218-16,700 | SuperVault 4 hour fire rated iTank | 16700 | 2440 | 6060 | 1800 |
| SViT 218-25,700 | SuperVault 4 hour fire rated iTank | 25700 | 2440 | 9100 | 1800 |
| SViT 218-34,658 | SuperVault 4 hour fire rated iTank | 34600 | 2440 | 12160 | 1800 |
| SViT 318-21,900 | SuperVault 4 hour fire rated iTank | 22000 | 3000 | 6060 | 1800 |
| SViT 318-33,600 | SuperVault 4 hour fire rated iTank | 33600 | 3000 | 9100 | 1800 |
| SViT 318-45,312 | SuperVault 4 hour fire rated iTank | 45300 | 3000 | 121600 | 1800 |
| SViT 227-27,394 | SuperVault 4 hour fire rated iTank | 27300 | 2440 | 6060 | 2700 |
| SViT 227-41,703 | SuperVault 4 hour fire rated iTank | 41700 | 2440 | 9100 | 2700 |
| SViT 227-56,600 | SuperVault 4 hour fire rated iTank | 56500 | 2440 | 12160 | 2700 |
| SViT 227-67,700 | SuperVault 4 hour fire rated iTank | 67600 | 2440 | 14478 | 2700 |
| SViT 327-35,600 | SuperVault 4 hour fire rated iTank | 35600 | 3000 | 6060 | 2700 |
| SViT 327-54,630 | SuperVault 4 hour fire rated iTank | 54600 | 3000 | 9100 | 2700 |
| SViT 327-73,630 | SuperVault 4 hour fire rated iTank | 73600 | 3000 | 12160 | 2700 |
| SViT 327-88,000 | SuperVault 4 hour fire rated iTank | 88900 | 3000 | 14478 | 2700 |
Downloads
PDF Sheets - click to open in a new tab
Case Studies
Spark Data Centre
Fuelchief collaborated with a series of suppliers to place a custom Fuelchief SuperVault into a brand new data centre facility for Spark.
Joe Deck
Spark Telecom Exchange Building
Fuelchief collaborated with Aurecon engineers to place a customised Fuelchief SuperVault for Spark's telecommunications building.
Joe Deck
Powerco
Fuelchief teamed up with Terra Cat to provide a Fuelchief DCD100 diesel fuel tank to Powerco for critical power backup.
Joe Deck
Relocatable SuperVault For Client
See how our SuperVault was the ideal solution because of it's relocatable design and compliance that it proved to be a real asset.
Joe Deck
University Of Canterbury
Our latest SuperVault case study on a how our 4-hour fire rated tank replaced an underground fuel tank for the University.
Joe Deck
Sandspit Marina
Fuelchief supplies tank to Sandspit Marina, view the latest results of the transaction and why the manager is looking for another tank from us.
Joe Deck
Airways: Critical Control Tower Upgrades
The Fuelchief SuperVault 4 hour fire rated fuel tank was custom made to ensure the critical environment of a aviation control tower was met.
Joe Deck
NZ Bus Auckland Depot Upgrade
See how the SuperVault Cylindrical 4 hour fire rated tank ensured refuelling compliance for NZ Bus. Check out the latest case study.
Joe Deck
Air New Zealand Jet Engine Testing Facility
Fuelchief supplied Air New Zealand, one of the most recognised global airlines in the world, a SuperVault for their new testing facility.
Joe Deck
Christchurch Hospital
Chirstchurch Hospital, consultants needed a SuperVault tank to back up critical generators to ensure continual power in an outage.
Joe Deck

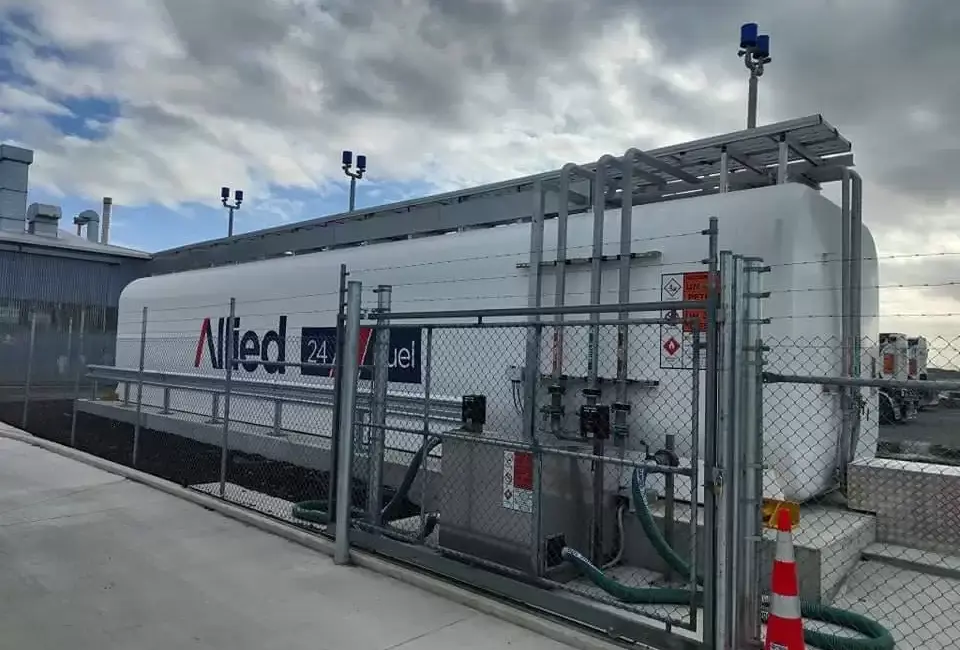

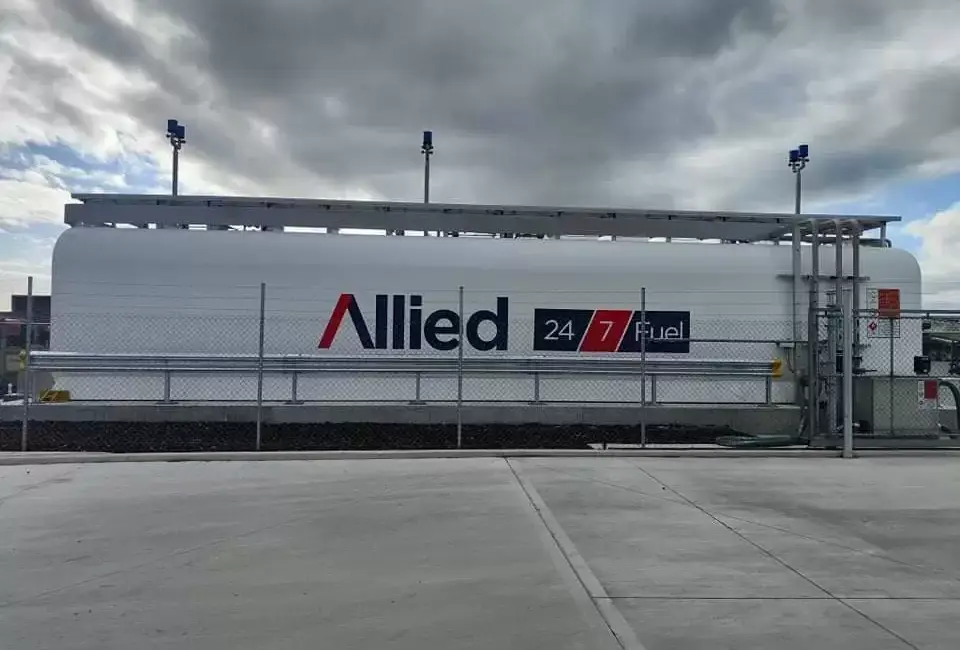

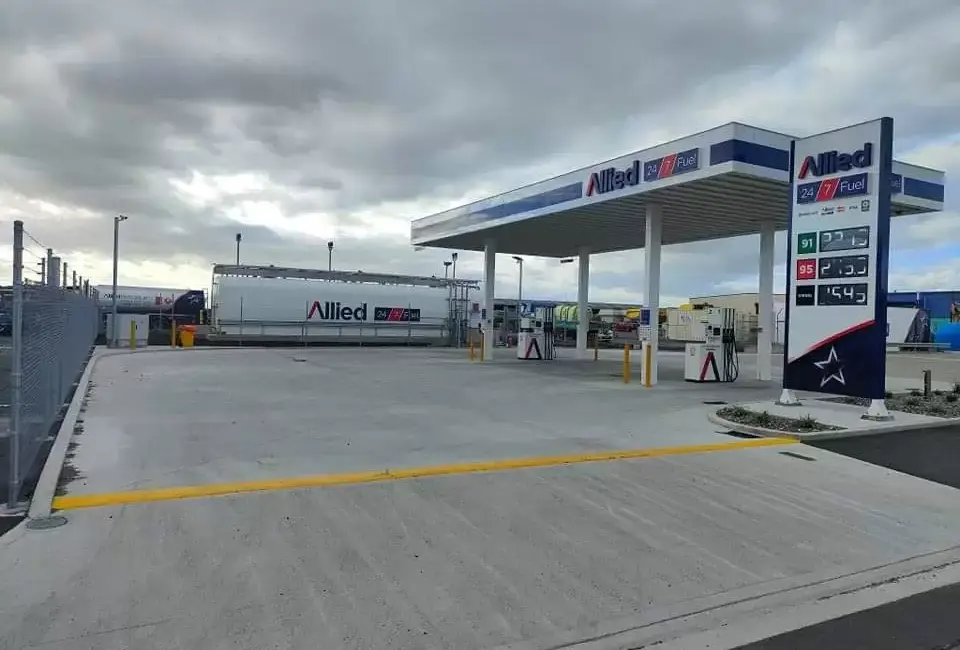

Allied Petroleum iTank in Invercargill
